Auto Rotary Type Valve Steam Seal Trimming Machine (4-Stations Type)
.jpg)
.jpg)
.jpg)
Features:

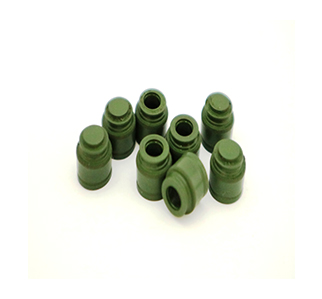

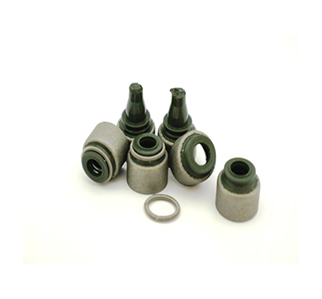

Suitable for Trimming Rubber Flash on the Valve Stem Seals, Rubber Cups & Rubber Packings
● Automatic Loading & Feeding, Positioning, ID & OD Trimming, and Unloading by Rotary Table
● Machine is Equipped with Feeding Tank and working with Robots for Loading and Unloading, OK/NG Packaging, Increasing Production Capacity
|
MOTOR |
2KW SERVO MOTOR X 1 SET |
|
POWER SUPPLY |
TO BE CONFIRMED |
|
HMI Control |
Pneumatic, PLC Controlled, & 7” COLOR TOUCH SCREEN |
|
Knife set |
Trimming Knife X 1 set |
|
Processing range |
O. D. Ø 10~ 30mm |
|
Spraying |
15 - 20 PCS/min |
|
Machine size |
( L )1350×( W )1100×( H )1700mm |
|
Packing size |
( L )1450×( W )1200×( H )1800mm |
|
Machine weight |
N.W.: 750kg G.W.: 850kg |
