Auto Oil Seal Spring Loading Machine
.jpg)

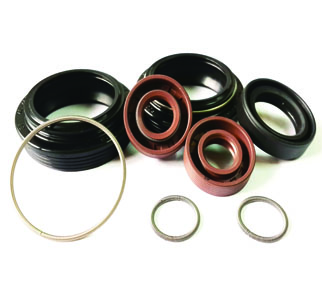

Processing range
Ø15-30mm
Ø25-40mm
Ø35-50mm
Ø15-30mm
Ø25-40mm
Ø35-50mm
Features:
Suitable for Spring Loading on oil seals.
Description:
● Using column cylinder quick shift characteristics combined with
automatic vibration feeder oil seals and springs high speed positioning,
mounting spring, check there are no mounted and yield and
defect-packing, full automatic, high efficiency.
2. this machine spring-production materials, surface mount, fast and
accurate.
● SPRING LOADING: BY FEEDING TANK & HOOK MECHANISM TO LOAD
SPRING ON OIL SEAL (SINGLE SIDE SPRING LOADING)
● Best equipment for auto spring loading instead of manual spring loading
● SIMPLE ADJUSTMENT FOR CHANGING DIFFERENT SIZE OF OIL SEAL
● Option item: CCD system for checking Good part and Bad part
MACHINE SPECIFICATION
|
MOTOR
|
15W
|
|
POWER SUPPLY
|
TO BE CONFIRMED
|
|
HMI Control
|
Pneumatic, electric PLC control and 7-inch color touch screen
|
|
Processing range
|
O. D. Ø 15~ 30mm、Ø 25~ 40mm、Ø 35~ 50mm
|
|
Processing times
|
20-25 PCS/min
|
|
Machine size
|
( L )1200×( W )1200×( H )1600mm
|
|
Packing size
|
( L )1300×( W )1300×( H )1700mm
|
|
Machine weight
|
N.W.:300kg G.W.:500kg
|
|
Maximum current
|
2A
|
