Auto Vacuum Type Oil Seal Trimming Machine(Bottom Ejector)
.jpg)
.jpg)
Features:

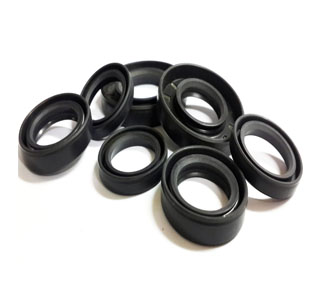

Suitable for Trimming Rubber Flash on all types of Oil Seals & Metal Bonded Oil Seals
● Using quick shift characteristics of column cylinder that is combined with automatic vibration feeding Tank to high speed Positioning and automatic Trimming the Oil Seal.
● Using Pneumatic Vacuum for Auxiliary Trimming. Fast and Easy for Die Change Over & Knife Adjustment
● Bottom Ejector is operated after finishing the Trimming Rubber Flash on Oil Seal. Make the automation process smoother
● SIMPLE ADJUSTMENT FOR CHANGING DIFFERENT SIZE OF OIL SEAL
|
MOTOR |
2KW SERVO MOTOR X 1 SET |
|
POWER SUPPLY |
TO BE CONFIRMED |
|
HMI Control |
Pneumatic, PLC Controlled, & 7” COLOR TOUCH SCREEN |
|
Knife set |
OD Trimming Knife X 1 set, ID Trimming Knife X 1 set ANGLE ADJUSTABLE: 30°~60° |
|
Processing range |
O. D. Ø 10~ 50mm ( OPTION ITEM: FEEDING TANK Ø650mm for Processing ODØ10- 60mm) |
|
Spraying |
10- 15 PCS/min |
|
Machine size |
( L )1800×( W )1300×( H )2000mm |
|
Packing size |
( L )1900×( W )1400×( H )2100mm |
|
Machine weight |
N.W.: 500kg G.W.: 600kg |
