Auto Oil Seal Metal Case Adhesive Spraying Machine
.png)
.jpg)
Processing range: Metal Case O.D. Ø5-60mm
Features:

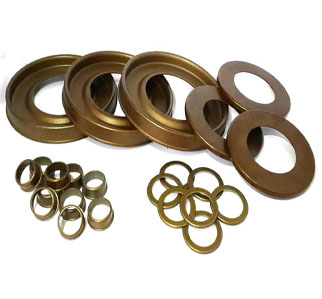

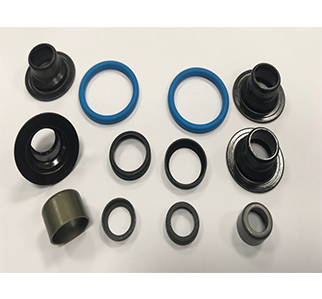

Suitable for spraying color on rubber products, and spraying adhesive on metal cases of oil seals.
Description:
●EVEN SPRAYING, DRY FAST, HIGH EFFICIENCY
●TURNING SPEED OF BARREL IS CONTROLLED BY INVERTER,
SETTINGABLE
●AUTO PUMPING OF ADHESIVE & SHORTAGE OF ADHESIVE AUTO
ALARM
● Fast loading and unloading. Auto return to start point (Reset)
|
MOTOR |
3KW(15A) |
|
POWER SUPPLY |
TO BE CONFIRMED |
|
HMI Control |
Pneumatic, PLC & 7” COLOR TOUCH SCREEN |
|
Processing range |
O. D. Ø 5~ 60mm |
|
Spraying |
LIGHT/HEAVY SPRAYING IS CONTROLLED BY TIME SETTING |
|
Machine size |
( L )2100×( W )2200×( H )2000mm |
|
Packing size |
( L )2300×( W )2400×( H )2200mm |
|
Machine weight |
N.W.:800kg G.W.:900kg |
